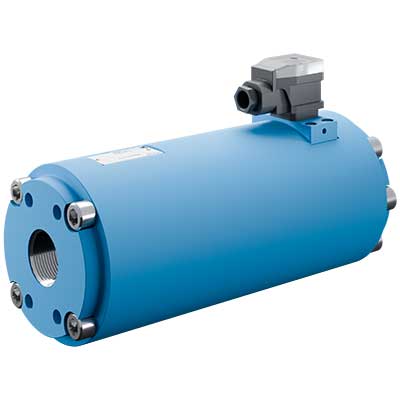

SCREW TYPE FLOW METERS SVC

HIGHLY PRECISE AND ROBUST

Our screw type flow meters incorporate the product characteristics robustness, high-precision measuring accuracy, good handling as well as durability and economy. Further advantages are resistance and insensitivity to contamination, pulsation free and low pressure drop.

> SVC
> SVC with encoder
> SVC with IO-link

SCREW TYPE FLOW METERS SVC

Particularly suitable for highly viscous media with abrasive fillers

CHARACTERISTICS

Measuring range: 0.4 … 3 750 l/min
Temperature range: -40 … 210 °C
Maximum pressure: … 480 bar

APPLICATIONS

> Fuel consumption measurement
> Dosing systems
> Process technology
> Test bench construction

PRODUCT CHARACTERISTICS

> High-precision measurement with outstanding reproducibility
> Pulsation-free measuring principle
> Very low pressure drop
> Any flow direction
> Wide temperature range
> High working pressure
> High-response measurement
> Very low noise emission
> Electronics in EMC compliant design
> RoHS compliant

OPTIONS

> ATEX version
